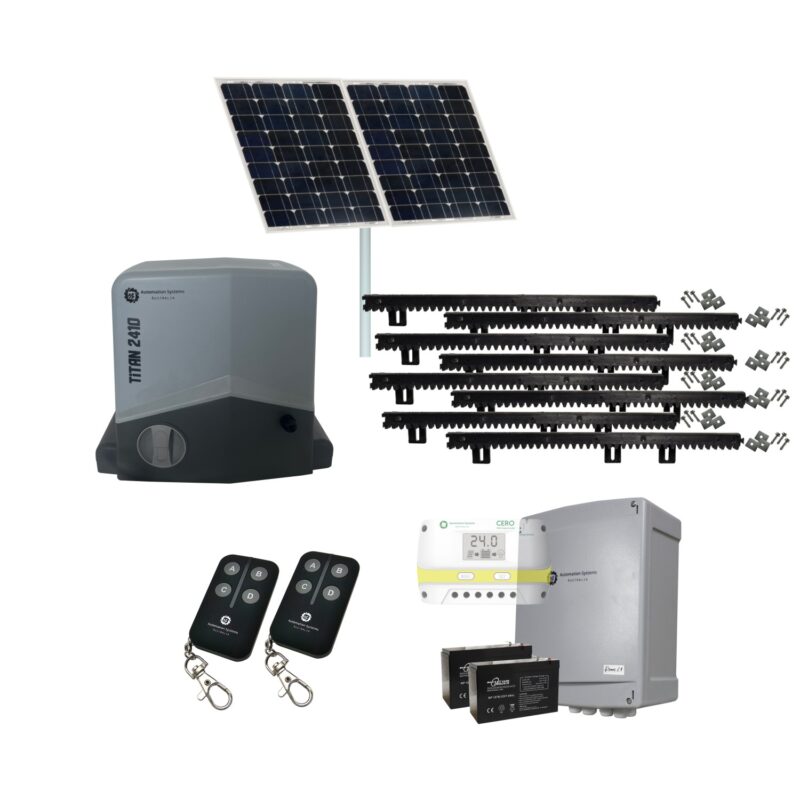

Titan 2410 Solar OFF GRID Automatic Sliding Driveway Gate Opener 24 Volt Kit FAST Heavy Duty POWERFUL Design

The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab).

Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life.

Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability.

The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).

✓ Fast and Efficient 24 Volt Operation
✓ Die-Cast Alloy Housing
✓ Compact Footprint
✓ Multiple Cable entries by IP68 rated Glands

✓ Steel Pinion Gear
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Flexible size and weight capacities

Tough 180 Watt DC Motor and Digital Logic Controller

Steel Pinion and Easy Limit Switches

Secure yet Easy Manual Release

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
✓ Open partially Pedestrian Mode Feature (adjustable distance)
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output
✓ Traffic Light Output
✓ Driveway Light Output

Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate..
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Residential, Commercial and Complex Working Modes Options

✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
✓ Typical Complex – Individual Open and Close Command Inputs
✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

Operating Voltage	24V DC Via Solar Regulator
Maximum Gate Size	8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab)
Maximum Gate Weight	1000KG
Duty Cycle	90%
Thrust	27nM
Speed	Adjustable up to 36cm/s (21 Meters per minute)
Standby Consumption	40mA
Supports Battery Backup	Yes, 24V DC
Light Support	Yes, Traffic Light/Driveway Light/Strobe
Accessories Voltage	Yes, 12V DC
Safety Inputs	Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
Operating Temperature	-10°-60°C
Maximum Remotes	250

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module
