Heavy Duty Articulated Arm Swing Gate Motor with Adjustable Limit Stops
The FTX is designed for your homes brick pillars, piers or post installation allowing for a maximum opening span of up to 4 metres and the allowance of a maximum gate weight of 250kg each.
This covers the large majority of typical installations for residential homes. Best of all the FTX houses its digital control board within the master motor which can be installed on either side of the driveway to best suit the installation requirements.
Further key benefits of the FTX are the adjustable limit stops to set the open and closed position with ease allowing an opening installation up to 110°. With its narrow footprint of only 165mm and centered holes at 50mm the FTX can be installed on either 75mm with a plate or 100mm posts.
All-in-One Design

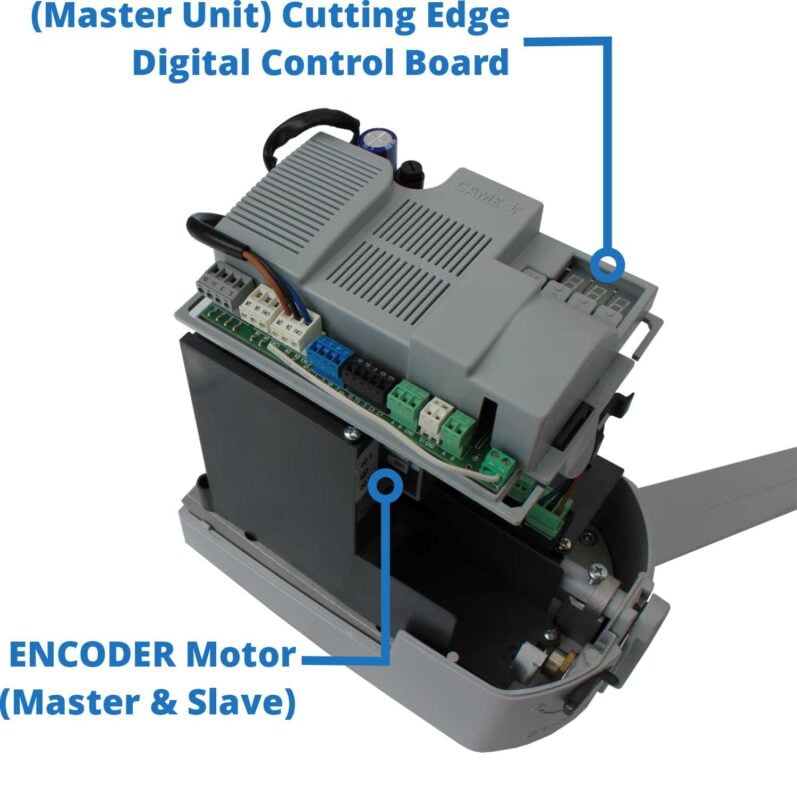

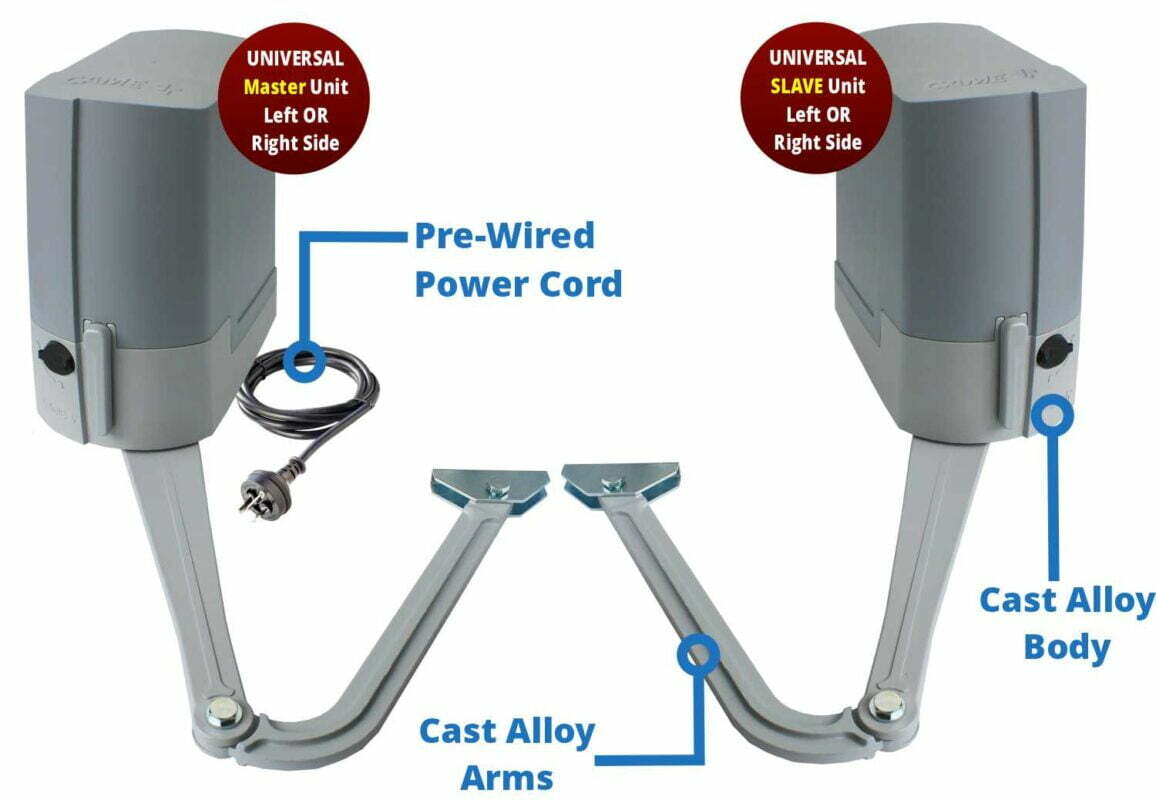

The all in one design cleans up the installation substantially allowing any connected accessories and the systems power to feed directly into the MASTER unit with the on board digital control board. The Master unit and Slave units can be installed on either side of the driveway without any adjustments or changes.
Encoder Technology
Undisputedly the best technology the encoder motor is standard and will feedback to the system where the gate motor and effectively the gate is in its travel through the entire cycle.
Allowing for reliable operation regardless of any changes in operation be it due to temperature, wind or other factors. This is the technology you can rely on for constancy and peace of mind.
Adjustable Limit Stops

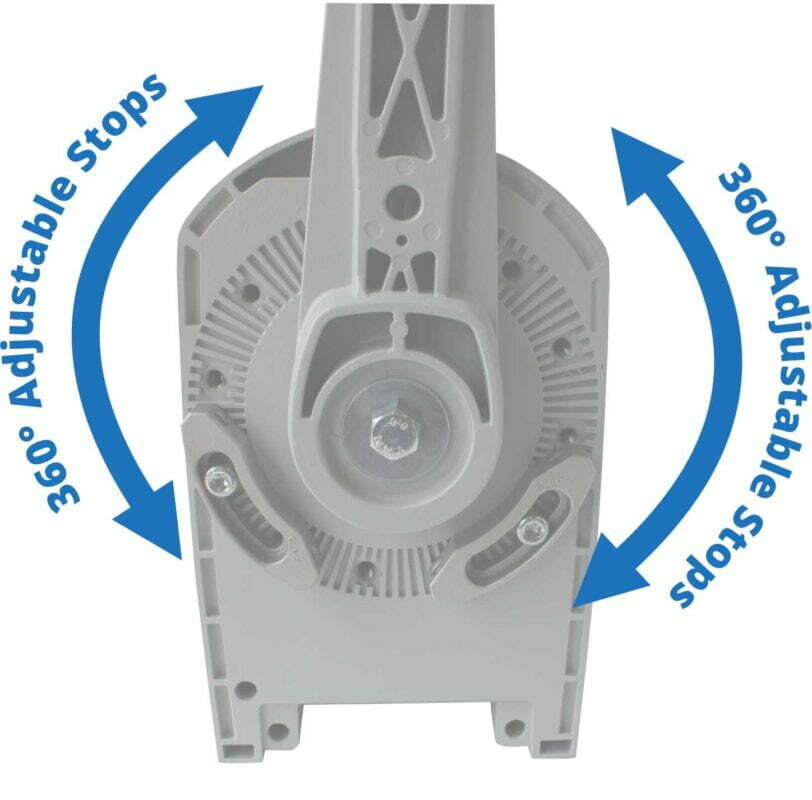

Designed for simplicity and ease of installation, no gate stop is required in any position with the completely adjustable open and closed position stops on each motor. The added benefit is it also keeps the driveway clear of any center stops (no more tripping hazards).
Manual Release

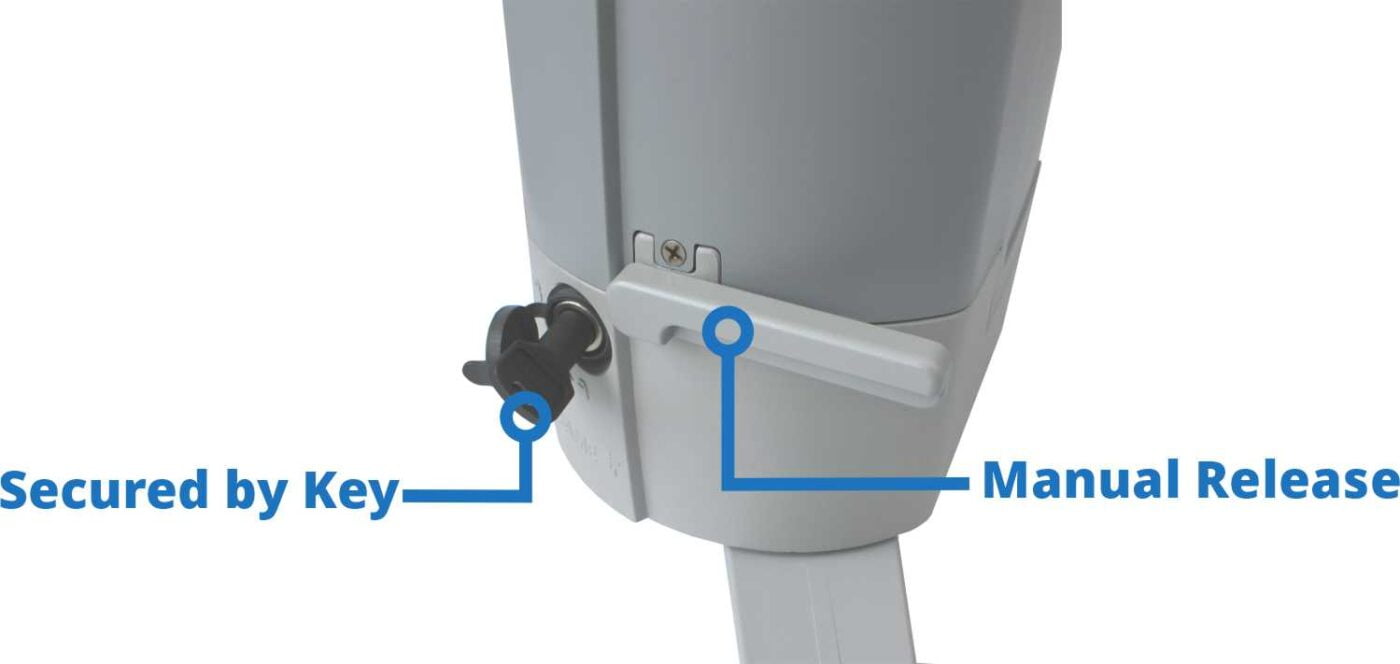

Easy to use manual release incase of power outage. Insert the supplied key and turn to unlock the manual release lever. To release turn the manual release lever and now the gate can be opened and closed manually. If required a battery backup system is available for completely uninterrupted operation. The system is completely housed within the master unit.
Specifications
| Maximum Gate Width | 2M Each |

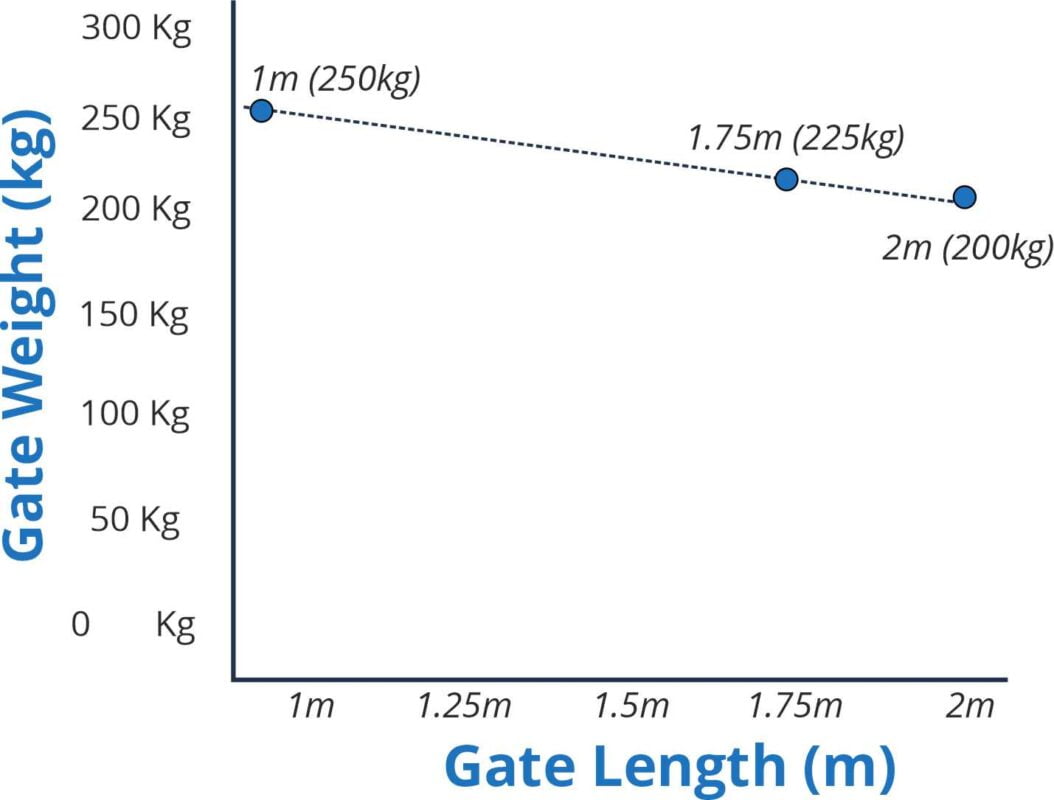

| Maximum Gate Weight | 250KG Each |
| Maximum Opening Angle | 110° |
| Encoder | Yes |
| Motor Power (Volts) | 24V DC |
| Power (Watts) | 140W |
| IP Rating | 44 |
| Operating Temperature | -20° to +55° C |
| Thrust (Nm) | 180 |
| Duty Cycle | 40% |
Digital Control Board

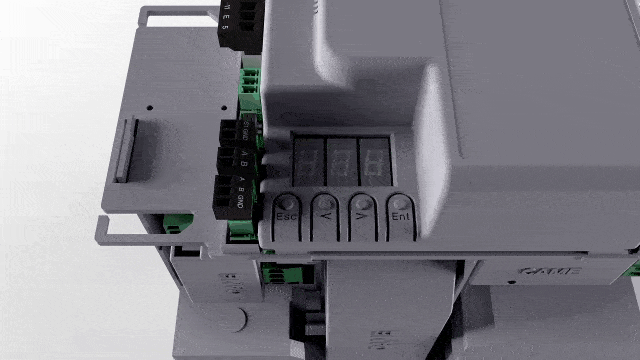

By default the control board will be pre-configured for the best typical settings for most users however with the onboard digital display and easy to use scroll buttons the configuration options are almost endless. Out of the box it will be configured for Both Gates OPEN/CLOSE + Pedestrian Function (one gate full open) in a home you would just enable and set the automatic close timer (if required) and that’s it. However in an installation with a longer driveway you may want to adjust the pedestrian command to be an OPEN ONLY input allowing for the use of a loop detector to be used to detect vehicles approaching the gate and open automatically (and optionally close on the automatic close timer if enabled)
Power Inputs and Outputs
Typical input and outputs to power the system and any wired in accessories
24V Power Input24V Power Output For AccessoriesConfigurable Methods Of Operation
Wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening
Full Gate OperationPartial (Opens one gate partially) OR Pedestrian (Opens ONE gate completely)Open OnlyClose OnlyRemote Operation
The remote buttons can individually be programmed to work in any of the below settings for each button.
OPEN-CLOSE (Reverting action if pressed part way through a cycle)OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)Partial-Pedestrian OperationMotor Specifics
Default configurations are already set however, if required further adjustment can be made to suit all installations
ENCODER ControlAutomatic Calibration (with Adjustable Calibration Speed)Motor Test (used for checking your directions prior to calibration)Adjustable ThrustAdjustable Travel SpeedAdjustable SensitivityAdjustable Slowdown SpeedAdjustable Slowdown Position (Two Stages)Delay Time Between Motors for OpeningDelay Time Between Motors for ClosingLight Control
Multiple options for visible safety alerts, illuminating the driveway OR Both
Flashing/Static Illuminated Light from OPEN til CLOSEDAdditional Output for Flashing During OpeningAdded Security
Added protection for the gates and gate system if wind is a factor or in a high risk setting
Automatic Electric Lock (Adjustable Time) with Reverse Thrust Feature
Safety Devices
Plenty of support to protect occupants, visitors and there vehicles with TWO Safety Inputs completely configurable in there functionality and method of operation with FOUR different logic settings available.
Supports Photocell SensorsSupports Reflective SensorsSupports Safety EdgeSupports Induction Loops for SafetySupports STOP ButtonSupports Maintained Action (Hold to OPEN/CLOSE)Operational Control
Infinite support for accessories and methods of operation
Remotes ControlsWireless KeypadsWired KeypadsWired ButtonInduction LoopsIntercom Systems
